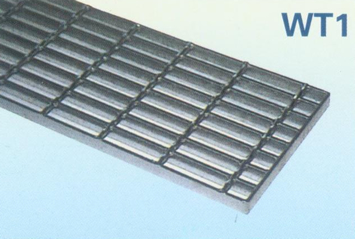

| Type WT1 TO ST4 Series1 |
125 |
155 |
185 |
215 |
245 |
275 |
305 |
| Type WT1 TO ST4 Series2 |
125 |
165 |
|
205 |
245 |
285 |
325 |
| Type WT1 TO ST4 Series3 |
125 |
|
185 |
|
245 |
|
305 |
|

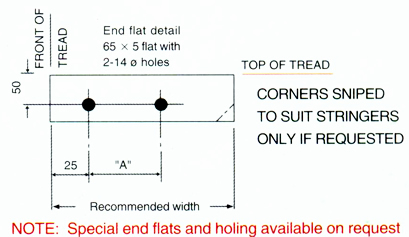

| Bolted Connections |
| Bolt hole crs’a |
45 |
75 |
75 |
100 |
100 |
125 |
125 |
For other bar thicknesses,adjust width accordingly
|
| Recommended Max.Lengths |
 |
| Load Bar Size |
25×3 |
25×5 |
32×5 |
40×5 |
| Series1 |
550 |
900 |
1300 |
1600 |
| Series2 |
450 |
750 |
1200 |
1500 |
| Series3 |
|
550 |
850 |
1350 |
|
When Ordering a tread the grating type must be nominated e.g .wt6(wx wa 325 Series)
|
|
|
|
|
Grating can either be welded or clamped to the supporting steelwork by the erection contractor.
The fastener (clip)has been designed to secure either Series 1,2 or 3 grating patterns.
Where no flange is available on the supporting steelwork the fastener top can be used with self drilling or thread cutting screws.
|
 |
 |
 |

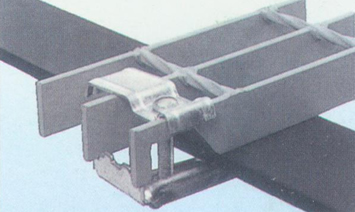

| Series 1 Grating |

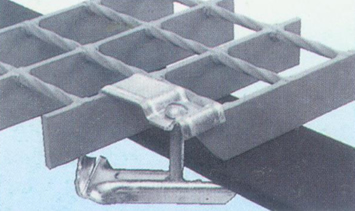

Series 2 Grating |

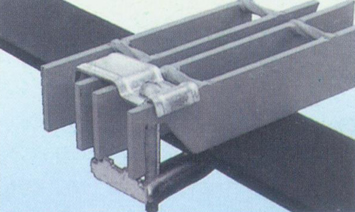

Series 3 Grating |
 |
 |
|

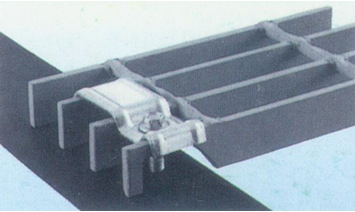

| Fastener only and thread cutting screw |

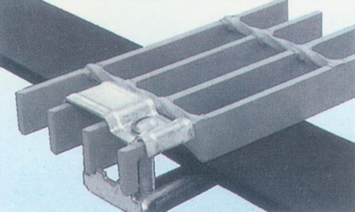

Fastener used to secure two adjacent panels |
|
|
