Series 2

SERIES 2 grating is a most economical and lighter weight grating than Series 1, conforming to the requirements of the S.A.A. Code for Fixed Platforms, Walkways, Stairways and Ladders.This product is ideal in areas of short spans and even loading such as conveyor walkways. Uses include storage shelves, mezzanine floors, catwalks, security grilles and sun screens.

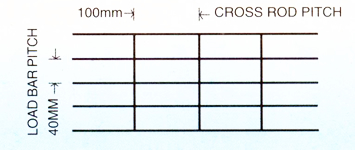

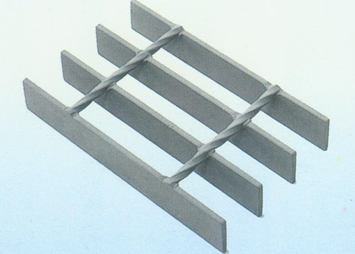

SA Series 2

	STANDARD END BANDING WELD-EVERY 4TH LOAD BAR

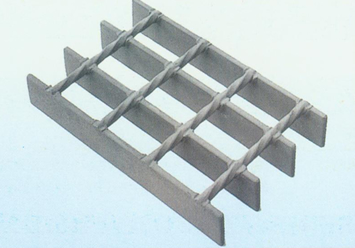

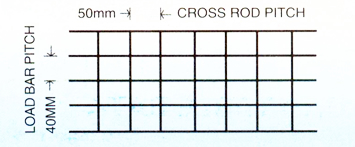

SB Series 2

	STANDARD END BANDING WELD-EVERY 5TH LOAD BAR

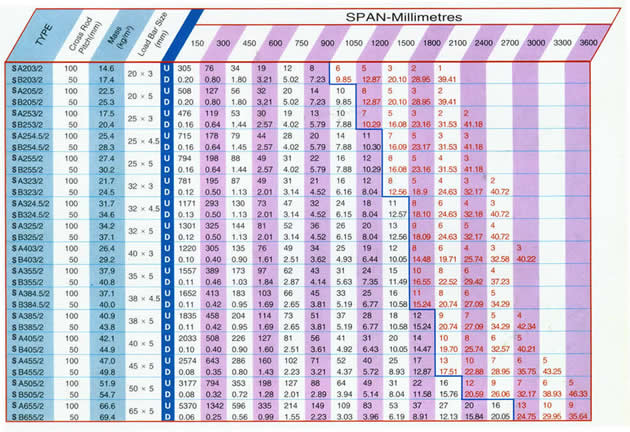

Note:Spans to the left of the heavy line have a deflection of less than 5 mm for a 4 kPa uniformly distributed load, which is a limiting deflection for pedestrian comfort.

Nominal^o/A Dimension of Bars(in mm)

NO.of Bars	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18
5mm Load Bars	125	165	205	245	285	3235	365	405	445	485	525	565	605	645	685
NO.of Bars	19	20	21	22	23	24	25	26
5mm Load Bars	725	765	805	845	885	925	965	1005

Note:
1、For 3mm load bars subtract 2mm from widths
2、width dimensions can vary due to manufacturing process

Serrated conversion factors

Load Bar	20×3	20×5	25×3	25×4.5	25×5	32×3	32×4.5	32×5	35×4.5	35×5	35×5	38×5	40×3	40×5	50×5	65×5
Load	Not recommended		0.79	0.79	0.79	0.83	0.83	0.83	0.85	0.85	0.86	0.87	0.87	0.88	0.89	0.92
Deflection	Not recommended		1.12	1.12	1.12	1.09	1.09	1.09	1.08	1.08	1.07	1.07	1.07	1.07	1.06	1.04
